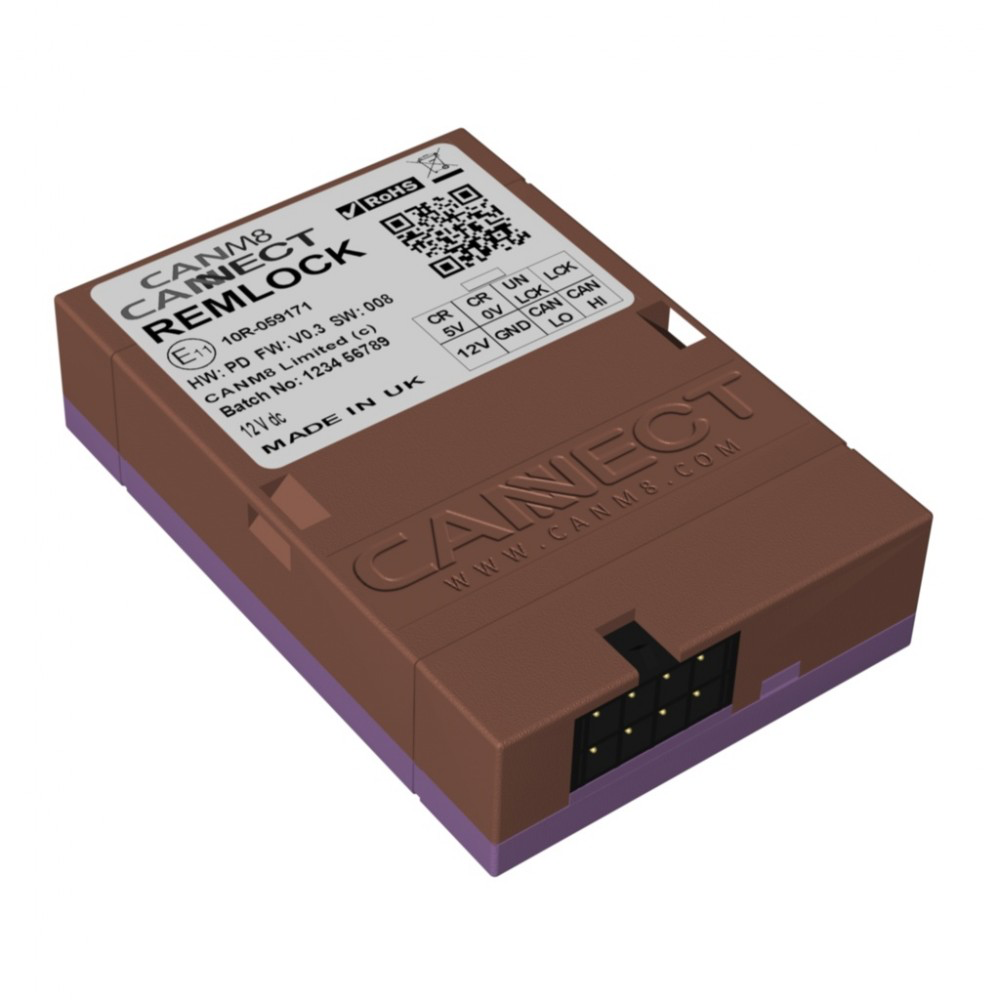

CanM8 CANNECT Canbus Remlock Interface Harness
CanM8 CANNECT Canbus Remlock Interface Harness
Verfügbarkeit für Abholungen konnte nicht geladen werden
The CANM8 CANNECT REMLOCK is a dual output CAN (Control Area Network) Bus interface for vehicles that feature CAN Bus wiring. It provides separate 12v outputs for door lock and door unlock, so you can control an aftermarket central locking system using the vehicle's original remote key fob. Each output is active for 2 seconds when the lock or unlock command is detected.
Outputs
| Door Lock | > | 12v (1A max) active for 2 seconds when the doors are locked. |
| Door Unlock | > | 12v (1A max) active for 2 seconds when the doors are unlocked. |
Applications
The CANM8 CANNECT REMLOCK can be used to power a locking control motor and will replicate the door lock and unlock functions of the vehicle's original remote key fob. It is a good fit for aftermarket central locking and actuator installs, and for adding lock-triggered accessories without tapping into the vehicle's factory locking wiring. If your actuator or accessory draws more than 1A, switch it through a relay.
Key Features
- Two separate 12v outputs, one for lock and one for unlock
- Outputs are active for 2 seconds per lock or unlock event
- Works with the vehicle's original remote key fob
- Connects through the vehicle's CAN Bus wiring (CAN HI and CAN LO)
- Updatable CANNECT firmware that is kept current with new vehicle applications
- Bi-color status LED confirms CAN connection and vehicle recognition
- Mini wiring connector unplugs for easy installation
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and a ground connection. Purchase the contactless reader to prevent wire splicing of the CAN-specific wiring.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognized.
LED Status Details
- Flashing Red: Searching for CAN information.
- Solid Red: CAN Data received but vehicle not yet identified.
- Solid Green: CAN Data received and vehicle type recognized.
- Flashing Green: Vehicle speed detected.
Wiring Harness Details
| RED | > | Connect via a 5A fuse to a PERMANENT 12v supply. |
| BLACK | > | Connect to a good chassis GROUND point. |
| WHITE | > | CAN HI Connection : Vehicle CAN HI wire. |
| BLUE | > | CAN LO Connection : Vehicle CAN LO wire. |
| PURPLE | > | Door Unlock Output : 12v (1A max) active for 2s when doors are unlocked. |
| BROWN | > | Door Lock Output : 12v (1A max) active for 2s when doors are locked. |
Notes:
- This product ships straight from the manufacturer and may take 7-10 business days to arrive after order is placed.
- Please enter your year, make, model of the vehicle you intend to use this device on in the space above. If this is not provided at time of purchase, you will be contacted to identify your year/make/model of vehicle to properly program the interface.
